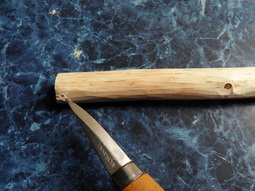

(2.16 MB 2448x3264 32648-m52yvu.jpg)
Bernd 09/24/2019 (Tue) 05:44:35 [Preview] No. 29294
I am the Spaniard that bought the carving knife.
Where should I begin to learn carving skills?


Bernd 09/24/2019 (Tue) 06:10:41 [Preview] No.29300 del
Don't hurt trees


Bernd 09/24/2019 (Tue) 06:12:04 [Preview] No.29301 del
>>29300
I will carve KC on all trees I find.
Yuo cannot stop me.


Bernd 09/24/2019 (Tue) 06:21:09 [Preview] No.29302 del
>>29294
>>29301
TREE BULLYING IS NOT OKAY!!


Bernd 09/24/2019 (Tue) 06:24:58 [Preview] No.29303 del
>>29302
oí do ye hav a loicense fo that greentext?


Bernd 09/24/2019 (Tue) 06:26:25 [Preview] No.29304 del
>>29303
Meant redtext
Short heada


Bernd 09/24/2019 (Tue) 08:24:13 [Preview] No.29310 del
Self bump.
I know carve-hungarian is here.


Bernd 09/24/2019 (Tue) 15:24:20 [Preview] No.29330 del
>>29310
I'm here. I should have specified that I chiefly available in the evenings and a little in the early mornings.
This is a slow board, so whatever you post it's sure I'll read it.


Bernd 09/24/2019 (Tue) 15:46:45 [Preview] No.29333 del
So carving with a knife is called whittling. Real carving is done more with chisels and gauges than knives.
Where to begin? I saw it on Kohl, you started ambitiously with a figurine. You can learn a lot with that but I also see you actually carving since I see chisels there.
Whittling is a slow process and needs lots of patience. It's removing little material with little force. I think first I would try different cuts, shallow, deep, in different angles, on different materials, different type of woods. Would try to remove a lot with one cut, and a little with one.
Maybe I would make a proper stake/tent peg. That needs a few types of cuts, very simple and can be made from all kinds of woods. I dunno what's available to you. Try it on softer one, pines, hazels, then harder ones, ash, oak, fruit trees. And you will see all differs, and you will know what you want to practice on.
But your approach was ok, you'll learn if you whittle/carve, no matter what.


Bernd 09/24/2019 (Tue) 16:45:07 [Preview] No.29334 del
Buy some European lime, a small saw and a small wood planer. Then again just fucking carve stuff.

I carved two knife from ash using a Stanley blade.


Bernd 09/24/2019 (Tue) 16:46:27 [Preview] No.29335 del
(1.19 MB 2592x1936 IMG_20190924_174145.jpg)
>>29334
whoops


Bernd 09/24/2019 (Tue) 16:58:35 [Preview] No.29337 del
>>29333
That's the other carving Spaniard. I'm another one. Im total newfag.


Bernd 09/24/2019 (Tue) 17:00:23 [Preview] No.29338 del
>>29337
There's a carving Spaniard? Didn't know. Bout 2015-16 on KC main a Russian dude posted a carving. He used a board and made a landscape with a house and curving road. Was pretty dope.


Bernd 09/24/2019 (Tue) 17:03:11 [Preview] No.29339 del
So then, get a stick, and make it pointy. Get another stick (a different wood) and make that pointy too.
When I was a kid in school we used pencils a lot and I always sharpened them with a knife. Was a good experience to see how the differing quality woods got whittled.


Bernd 09/24/2019 (Tue) 17:10:21 [Preview] No.29340 del
(29.85 KB 570x437 tent-peg.jpg)
Here's some tent pegs, freshly dl'd from the nets, will be good for template. With making such you can practice cutting perpendicularly to the grain and in an angle.
The grain runs more or less straight in the wood (up and down) but at certain places (like where's a know) it can warp. You'll see how the wood behaves differently.
You can leave a stake/peg round at first (if you make it from a stick), but trying to make it rectangular is also a good practice.
Don't whittle large portions, only little. As I said, it's removing little material with little force.

Also get iodine, sterile gauze and adhesive for your wounds as you'll cut yourself a lot in the future.

>>29335
I like those, I yet to try ash, looks nice material.


Bernd 09/24/2019 (Tue) 17:11:19 [Preview] No.29341 del
>>29340
>like where's a know
*like where's a knot


Bernd 09/24/2019 (Tue) 20:02:21 [Preview] No.29352 del
(4.30 MB 3184x2418 The_Try_Stick.jpg)
I post this here too. It has explanations, angles, measurements.
Try stick is good, because one will use the same cuts when whittling something more complex, like a figurine.


Bernd 09/24/2019 (Tue) 21:50:07 [Preview] No.29354 del
>>29352
Downloaded'ed


Bernd 09/25/2019 (Wed) 05:29:09 [Preview] No.29362 del
>>29354
Well, if anything is ready, feel free to post your makenings for ratenings.


Bernd 09/25/2019 (Wed) 20:55:06 [Preview] No.29379 del
>>29362
Rate unfinished tent peg


Bernd 09/26/2019 (Thu) 05:35:49 [Preview] No.29381 del
>>29379
Breddy gud, make it pointy.
Then we'll kill vampires.
And then, if you make two V notch instead of the 90 degree and make the point of the stick more elongated then you'll get something like this: >>29335


Bernd 09/26/2019 (Thu) 05:53:59 [Preview] No.29382 del
>>29381
Cool.
Should I try to make an ebin whistle?


Bernd 09/26/2019 (Thu) 05:56:27 [Preview] No.29383 del
>>29382
Can be done.
But drilling holes with knives aren't that easy.
Peeps sometimes split a stick, carve channel for the air going then glue the stuff together, or tie it tight.


Bernd 09/26/2019 (Thu) 05:57:01 [Preview] No.29384 del
I have to bounce tho right now, can continue in the evening.


Bernd 09/26/2019 (Thu) 06:40:12 [Preview] No.29386 del
>>29379
Looks very good
Are you going to sand it? If so, sand it in stages and wet the thing between stages.

>>29340
Ash is very hard, I got a bruised palm whittling those but the wood is lovely, very pale and not too heavy. Its also slightly flexible. Ash die back is causing lots of problems here so I keep finding felled trees with untouched branches. Soon Ash will be a rare wood.


Bernd 09/26/2019 (Thu) 14:19:59 [Preview] No.29388 del
>>29386
Thanks 4 advice


Bernd 09/28/2019 (Sat) 15:35:17 [Preview] No.29406 del
(838.78 KB 1632x1224 01-start-s.JPG)
(701.57 KB 1632x1224 02-barkless-s.JPG)
(637.58 KB 1632x1224 03-knot-s.JPG)
(477.62 KB 1632x1224 04-bend-s.JPG)
#1 - All this talk about whittling set my mood, so today I'm gonna maek sumtin. Wasn't sure what exactly, a round stick just screams for a chess piece.
#2 - Debark the stick.
#3 - That knot will be a broblem.
#4 - That bend too. That will limit the size.


Bernd 09/28/2019 (Sat) 15:36:19 [Preview] No.29407 del
(551.56 KB 1632x1224 05-ring-s.JPG)
(609.46 KB 1632x1224 06-base-s.JPG)
(598.21 KB 1632x1224 07-knight-s.JPG)
#5 - A ring where it can be sawed when it's ready. There will be the base.
#6 - Shaping the base, kinda round. It will be much more slim and slender, but I leave about this size for now so I won't break the thing down accidentally.
#7 - A couple of minutes after I decided this will be a horsie. A knight that is. I want one on the end of the try stick too. This will be the trial run.
#8 - At this point as I smeared some blood on the piece I realized I nicked the tip of my thumb. I had the choice to stop or continue with holding the stick awkwardly as I try not to bloody it more but this would hinder the process, and become a source of mistakes and maybe further wounds. No thanks.

Dunno when I will finish this, won't take long, one more session. However I found at least one designing flaws I made. But maybe it will be all right, just have to make the figurine smaller.


Bernd 09/28/2019 (Sat) 15:53:02 [Preview] No.29408 del
Oh I forgot. It's hazel.


Bernd 09/29/2019 (Sun) 06:24:38 [Preview] No.29415 del
>>29407
dude I love it. Are you going to file in those grooves? Maybe a face? Nostrils and eyes?


Bernd 09/29/2019 (Sun) 06:45:11 [Preview] No.29416 del
>>29415
>file
No.
But will cut as much details with the knife as I can. It's just I have to take a couple of days until my thumb heals enough. And even then, when I have the time, maybe next weekend. Or maybe I can steal a couple of minutes here and there, hazel is very easy to carve, it's a relatively quick job.


Bernd 10/20/2019 (Sun) 14:41:52 [Preview] No.30686 del
(715.06 KB 1632x1224 01-s.JPG)
(711.52 KB 1632x1224 02-s.JPG)
(516.87 KB 1632x1224 03-s.JPG)
I was high time to continue this little knight. Well, did less then I planned but it's still progress.


Bernd 10/20/2019 (Sun) 14:49:13 [Preview] No.30687 del
(543.96 KB 1632x1224 04-s.JPG)
(541.12 KB 1632x1224 05-s.JPG)
(537.33 KB 1632x1224 06-s.JPG)
It's getting look like a horse. But it got smaller and gonna gave problems with the details. The two most notable is the ears and eyes.
What really fucked me over is the center of the stick, it was just too soft and crumbly. It's not a coincidence that for real pieces they don't use sticks.

Also was in the woods today. Very nice weather, tho wasn't any exciting to photo. Maybe mushrooms, there were quite a few but many collector ranging around.


Bernd 10/20/2019 (Sun) 16:01:07 [Preview] No.30694 del
>>30686
>>30687
holy shit, very good stuff you are doing here, keep up the good work!


Bernd 10/20/2019 (Sun) 16:03:13 [Preview] No.30695 del
>>30694
Thank you dude. Are you the carving Spanish or the Catalan revolutionary?


Bernd 10/20/2019 (Sun) 16:23:29 [Preview] No.30700 del
>>30695
The catalan kek


Bernd 10/20/2019 (Sun) 16:38:37 [Preview] No.30703 del
>>30687
It looks like knight in the chess game.


Bernd 10/20/2019 (Sun) 16:39:00 [Preview] No.30704 del
>>30703
oh nevermind, you already told it's a knight.


Bernd 10/20/2019 (Sun) 16:43:30 [Preview] No.30709 del
(2.62 MB 427x240 history_of_chess.webm)
>>30700
Too bad, I'm curious of his progress.

>>30703
>chess


Bernd 04/26/2020 (Sun) 10:39:59 [Preview] No.36283 del
<bump


Bernd 06/21/2020 (Sun) 19:27:22 [Preview] No.37998 del
(1.11 MB 1632x1224 Y-s.JPG)
Now here's another project I might never finish. I have this Y branch from a poplar, dried maybe a year, I split it into halves. I want to make a stool and a table out of them, both three legged.
Needs to be flattened, planed, and I have some branches to fit into them as legs. Not sure about the holes for those, square probably and gonna use chisel, I don't have wide enough drill bits to make round holes, but maybe buy one, they ain't expensive. Also this pieces of log needs some sawing on their ends, they kinda started to rot sadly.
I forgot to place something beside them for size reference, their length about 55 cms.


Bernd 06/21/2020 (Sun) 19:29:07 [Preview] No.37999 del
>>37998
Also they smelled wildly turpentine right after splitting. Still moderately.


Bernd 06/21/2020 (Sun) 19:37:56 [Preview] No.38000 del
>>37998
u making the alphabet theres budy?


Bernd 06/21/2020 (Sun) 19:44:10 [Preview] No.38002 del
>>38000
That gave me an idea.


Bernd 06/22/2020 (Mon) 18:05:26 [Preview] No.38021 del
>>37998
>I want to make a stool and a table out of them
Or two giant slings.


Bernd 06/22/2020 (Mon) 19:10:40 [Preview] No.38026 del
>>38021
And use them for the Hungarian Space Program.


Bernd 08/15/2020 (Sat) 10:56:59 [Preview] No.39298 del
I made some progress with one of these >>37998 Gonna post pics later.


Bernd 08/15/2020 (Sat) 12:36:22 [Preview] No.39302 del
(1.04 MB 1632x1224 001-legs-s.JPG)
(1.30 MB 1632x1224 002-legs-s.JPG)
(1.33 MB 1632x1224 003-legs-s.JPG)
(1.21 MB 1632x1224 004-legs-s.JPG)
I had this hazel sapling I cut some time ago, it was 37 and over 50 mm in diameter at its thinnest and thickest ends, and was well over 2 meters long. I decided to use it for legs, cut up into three each is over 750 mms, which means it will be kinda low table, but I just want to use it as a flat-ish surface when it's needed, and a place I can put my tools when I do stuff in the garden. Maybe I can get some more hazel in the same size, but they need a year at least to dry.
Btw flat-ish surface, did some cleaning up on the Y log, sawed off the ends to make it clean, and roughly smoothed the surface. I thought I give it legs first then I'm gonna pane it a little.
I don't want the legs to be horizontal, but inclined a little. With the "I" part of the "Y" it's simple, but at the branches they have to be inclined in two directions.
I also plan to add cross "beams" between the legs to reinforce the whole structure.


Bernd 08/15/2020 (Sat) 14:19:12 [Preview] No.39308 del
(965.60 KB 1632x1224 005-legs-s.JPG)
(1.01 MB 1632x1224 006-legs-s.JPG)
Ok. Here's the last two. A storm and power outage prevented me to post.
So I made a flat place in an angle for drilling. I know I have to reprofile the chisel. It's sharp tho.
I haven't had a drill bit to drill wide enough holes so bought a 40 and a 35 mm flat drill bits. They were cheap but at least bad. Maybe the material isn't that bad, but they are kinda dull. Also they had a black coating to mask the fact that they are scratched all over. Couldn't fool me, I took a look. At first I judged the edge good enough (for government work) and got on with the drilling. Maybe with an electric drill it would have been enough, but I chose to do it with a hand cranked one. We call those Amerikáner, maybe I should look up the etymology for the other thread. Anyway it was pain to make even this shallow hole I have to sharpen the bits for sure. And I noticed the backside flat of the cutting edges are also scratched, so I have to make them nice and flat too.
Anyway this is what I have now. I'm gonna have problems with the thinner branch, the hole can't go too deep or I'll pierce the upper surface of the log.


Bernd 08/16/2020 (Sun) 14:26:41 [Preview] No.39323 del
Shieeet. After a bunch of work, the drill bits are starting to get usable but not good enough and I suspect with a hand-cranked drill they won't be the best tool for the job. I doubt I can fix the log stable enough to use electric drill, but maybe I have to try that in the end. For now my plan is that I cut a little with the hand-cranked, then chisel away the splinters causing the drill to stuck. But all these I have to leave for the next weekend. This sucks, but since I'm basically learning this, no biggie.


Bernd 08/22/2020 (Sat) 17:56:29 [Preview] No.39441 del
(9.14 KB 500x367 leg-forces.png)
Drilled that hole and fit that leg. Haven't made photo, maybe tomorrow.
Actually I'm par lying, partially had to chisel it out. Some lessons are getting digested right now.

No photo but here's a drawing. The leg fits bit more loose then was intended because as I cranked the drill, it moved left and right widening cavity. The end of the leg also isn't perfect round shaped so by default it had a direction where it was thinner. Above all this I had to debark it further slimming it. But its unevenness has its advantages because it also makes it stuck at places.
It does not fall off, despite it went in kinda easily. Beside those unevenness I suspect forces in the play too. It isn't shoved in vertically but the whole thing is in an angle, which means as the gravity pulls it straight down at the edge of the hole and at the top of the leg it gets pressed to the wall of the hole, keeping it secure in place.


Bernd 08/30/2020 (Sun) 17:44:57 [Preview] No.39618 del
(875.15 KB 1632x1224 007-legs-s.JPG)
(702.40 KB 1632x1224 008-legs-s.JPG)
(1.11 MB 1632x1224 009-legs-s.JPG)
Fixed another leg. Couple of weeks and it will be ready in no time.
It was easier to carve the hole than drill it. It has a tiny bit of a problem, it moves a bit along the longer axis. Which means I carved the inside of the hole wider a bit, even a couple of mms add much by the end of the leg. I have two plans to fix it, but first I wanna paint the whole thing with linseed oil. Which means I have to finish it beforehand.


Bernd 09/05/2020 (Sat) 15:43:38 [Preview] No.39820 del
(1.22 MB 1632x1224 010-legs-s.JPG)
(1.34 MB 1632x1224 011-legs-s.JPG)
(1.32 MB 1632x1224 012-legs-s.JPG)
IT STANDS! IT STANDS!
Finally, I carved the third hole out and fitted the leg. The one alone is a little longer than the other two, probably all the three will never be the same length but that's ok, I'm planning to use it in the garden where we don't have a square feet flat surface...
It's a little rickety for now, the two legs in the pair moves a bit, but not that much I could flatten the surface of the table with a chisel fine (now if I place a cube on it, it won't roll down). My plan to fix the little movement it has is to install "crossbeams", which will fix the legs in place relative to each other.
First I wanna debark the legs, then carve slots for the crossbeams on them, then make the crossbeams, then oil the whole thing, then put together, and finally drill holes in the legs at the crossbeams to fix it together with pegs.


Bernd 09/05/2020 (Sat) 15:44:12 [Preview] No.39821 del
>>39820
Btw. I sat upon it and it's stable.


Bernd 09/13/2020 (Sun) 10:28:05 [Preview] No.40038 del
(1.17 MB 1632x1224 013-crossbeams-s.JPG)
(1.01 MB 1632x1224 015-crossbeams-s.JPG)
(603.34 KB 1632x1224 016-kc-s.JPG)
(23.30 KB 1024x768 legs-crossbeam.png)
Began with the supporting sticks which will give the structural rigidity to make that table steady. Just a hazel sapling bout thumb thick, cut into three pieces. The shortest will be somewhat higher where its length will be sufficient. The lowest bar will connect the thinnest leg with the lone one, that was I tried to find the height for.
The problem will be keeping the chisel in the right angle to carve the slot for the stick. Probably will have to drill through first and follow that hole. However I first I'll have to find the place to carve, so will re-string it so the cord will stretch at the center line of the legs.
I picked a 10 mm thick chisel, a 10 mm wide hole will be enough.
Another point of potential failure is the stick's crookedness. It will serve fine, but it's not that easy to make the flat ends parallel.


Bernd 09/13/2020 (Sun) 22:39:21 [Preview] No.40055 del
>>39618
>2nd picrel

Has anyone ever thought of making a multistory birdhouse using wood with that shape?


Bernd 09/14/2020 (Mon) 16:22:47 [Preview] No.40076 del
>>40055
Somewhere, someone sure. Nothing new under the Sun. Not sure if the shape is advantageous.
Once I built an open birdfeeder, was basically a tray where I dumped seeds and walnuts and such and it had a wider roof.


Bernd 09/22/2020 (Tue) 15:36:46 [Preview] No.40229 del
Maybe in the meantime I'm gonna whittle a fork.


Bernd 09/23/2020 (Wed) 05:46:51 [Preview] No.40242 del
>>40229
>Maybe in the meantime I'm gonna whittle a fork.

It's easier to just buy one fam


Bernd 01/30/2021 (Sat) 16:10:12 [Preview] No.42346 del
(678.00 KB 1632x1224 01s.JPG)
(747.44 KB 1632x1224 02s.JPG)
(699.51 KB 1632x1224 03s.JPG)
(639.58 KB 1632x1224 04s.JPG)
Whittling a backscratcher.
It's a piece of hazel about two finger thick on the thicker end, 59-60 cm long. The photos differ much, were taken at different times with different light conditions.


Bernd 01/30/2021 (Sat) 16:18:23 [Preview] No.42347 del
(814.25 KB 1632x1224 05s.JPG)
(707.87 KB 1632x1224 06s.JPG)
(703.61 KB 1632x1224 07s.JPG)
(705.01 KB 1632x1224 08s.JPG)
Essentially it is ready. I might make it thinner, and/or coat it with varnish (so the oils it gathers from the skin, the dust that settles on the surface won't build up and make it dirty, so it can be cleaned and kept clean easier).
pic #6 is the butt end where I hold the scratcher.
The "rake" isn't sharp since I don't plan to flay my back.


Drive-by advise experts, LLC Bernd 01/30/2021 (Sat) 16:37:19 [Preview] No.42348 del
>>29294
>Where should I begin to learn carving skills?
Way I hear it these days Washington DC is a good place to start.


Bernd 02/07/2021 (Sun) 19:33:31 [Preview] No.42498 del
Stick it in you're pooper.


Bernd 06/08/2024 (Sat) 16:05 [Preview] No.52045 del
(883.20 KB 1224x1632 aszt1.jpg)
(1.03 MB 1632x1224 aszt2.jpg)
Remember this, Bernd?
Decided to dust off this project and finish it. I changed plan and instead of this >>40038 I just carve notches onto the legs, then drill holes through and fix em with dowels.
The third cross stick is still waiting. I'm hoping to finish it next week.
There are some work to be done, such as flatten the surface, or add a coat of linseed oil.



Top | Catalog | Post a reply | Magrathea | Return
